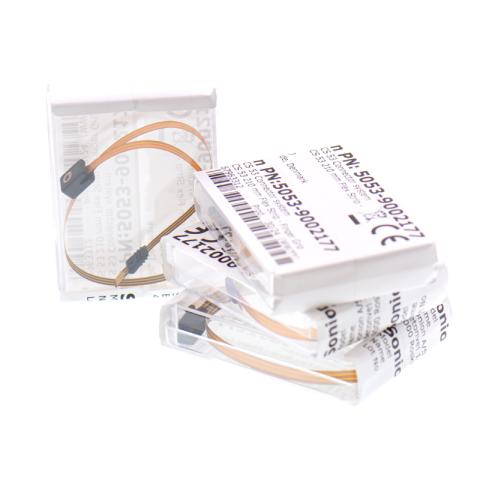

  • Sonion CS 53 Connector system 210 mm flex strip-5mm

  • Model : CS53

  • Weight of unit: Min. 3.0 g, Max. 8.0 g

    Storage temperature: -40 to + 60˚C

    Storage humidity: 10 to 95% RH
  • Add To Inquiry
  • Have a question?
Details

Mechanical Specifications

Weight of unit Min. 3.0 g, Max. 8.0 g
Minimum bending radius of flex > 1 mm
Tensile strength Max. 25 N
Torsion of flex Max. 90° per 15 mm flex
Insertion Min. 2000 cycles


Electrical Specifications

Contact resistance Max. 500 mΩ
Current Max. 150 mA
Peak current 250 mA for 1 s
Voltage Max. 50 V
Insulation resistance between leads Min. 1 mΩ


Material Specifications

All materials comply with RoHS directive (2011/65/EU)
Base material Polyimid
Conductive layer Cu, rolled annealed
Contact pads Gold plated
Stop guide Polymer
Socket Standard CS 44


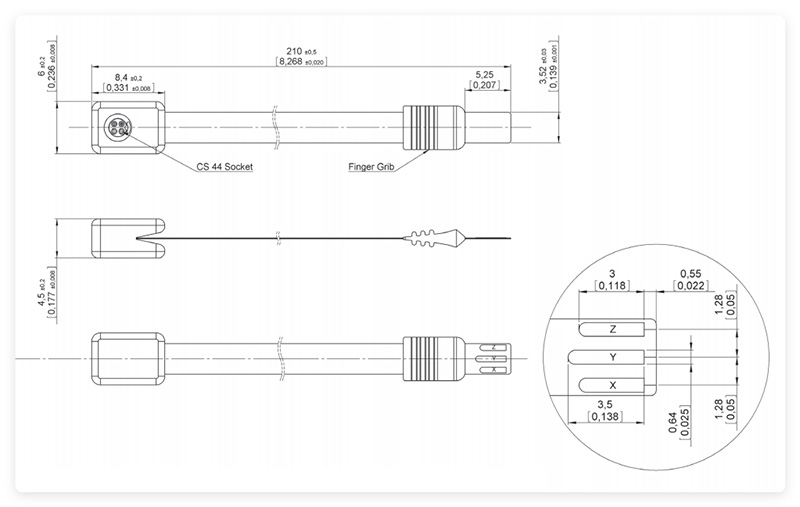

Sonion CS 53 Connector system 210 mm flex strip-5 mm

Thickness of contact pad area: 0.1025 ±0.0125 mm [0.00404 ±0.00049”]
Thickness of flex strip outside contact pad area: 0.085 ±0.015 mm [0.00335 ±0.00059“]
Note:
The standard measurement tolerance on the drawings is ±0.05 mm/[0.002”] and ±2°. Tolerances which
differ from this value will be indicated on the drawings.
