Hearing aid BA receivers

BA(balanced armature) receivers

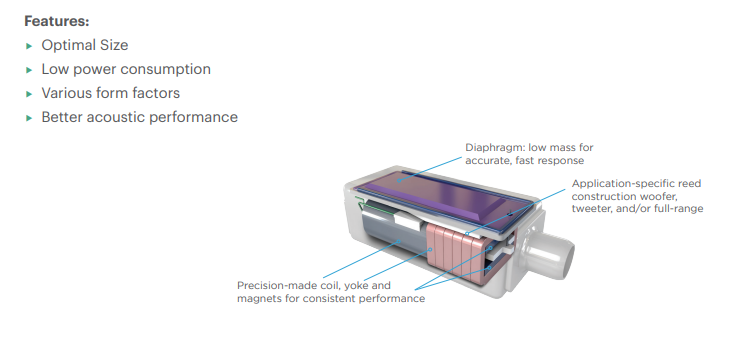

Our BA receivers are very competitive regards to performance, quality, dimension and price thanks to our development and automatic production lines. Balanced armature receivers are smaller than dynamic speakers and can be positioned closer to the eardrum which gives better fidelity and detailed sound for the music or voice replication. we offers multi-unit speaker systems as vibration cancelling modules to limit the mechanical feedback for hearing instrument applications, or as woofer and tweeter systems for mainly the audio applications to get a more perfect sound balance with a frequency response in according to customers requirement.

We have many years engineering experiences for the development of Balanced Armature (BA) for audio and hearing instrument applications.

Series	Picturer	Dimension（mm）	Features
ABAB-25		5.0×2.73×1.93mm	Small size, Max. output achieve 124dB. Can be used in CIC.
ABAB-26		5*2.82*2.03mm	Small size, tweeter.
ABAB-30		5.06×2.78×2.59mm	Small size, Max. output achieve 124dB. Can be used in CIC.
ABAB-40		5.15×2.96×2.58mm	Small size, Max. output achieve 124dB. Can be used in CIC or ITC. Can be used in earphone, improved low frequency performance.
ABAB-50		5.11×3.46×2.95mm	Middle size, Max. output achieve 123dB. Can be used in ITC or ITE
ABAB-80		6.37×4.35×2.96mm	Middle size, Max. output achieve 126dB. Can be used in ITE or BTE
ABAB-280		9.47×7.19×4.06mm	Max. output achieve 140dB. Can be used in BTE
ABADB-45		6.0*3.12*2.59mm	Dual receiver Small size, Max. output achieve 127dB. Can be used in CIC, RIC and mini BTE.
ABADB-50		5.0×2.73×3.92mm	Dual receiver Small size, Max. output achieve 124dB. Can be used in  ITE
ABADB-180		7.86×4.16×5.56mm	Dual receiver Small size, Max. output achieve 138dB. Can be used in BTE
