  • Bone conductor transducer for hearing aids

  • Model : RC-BC05
  • Specs: 10Ω 0.1W
    Type: Permanent-magnet  dynamic  loudspeaker
    Power: Nominal input 0.1 W,   Maximum input 1W
    Operation temperature:  -20 ° C~60 ° C
  • Add To Inquiry
  • Have a question?
Details

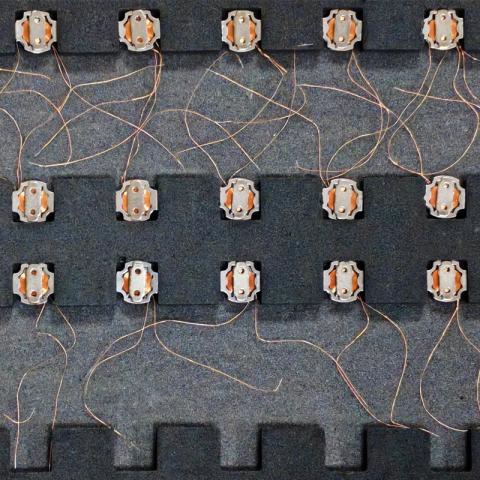

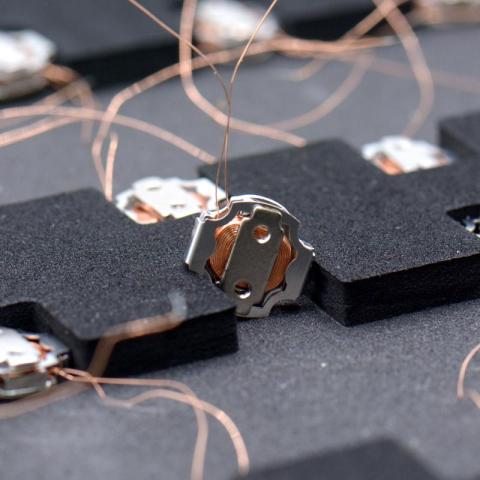

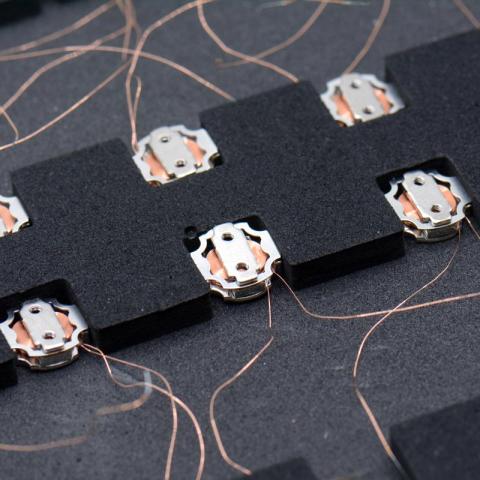

The RC-BC05 bone conduction transducer can produce sound through direct vibration of the bones in the head. Also, this powerful exciter is capable of converting surfaces into speakers via vibration when placed on materials such as desks, walls, doors, and many other solid materials.

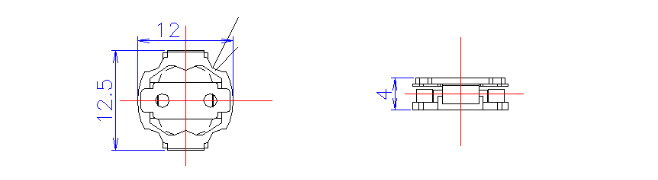

Size:

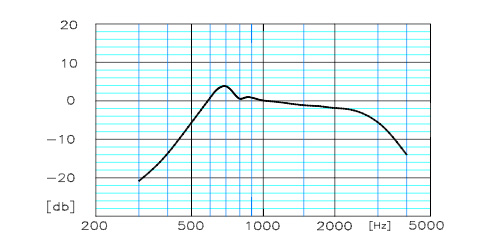

Frequency Curve


Bone Conduction Transducer Specification

Our Model No.
 RC-BC05
Specs
 10Ω 0.1W
Applicable  Scope
Type
 permanent-magnet  dynamic  loudspeaker
Dimensions
 12.5*12*4 mm
Power
 Nominal input 0.1 W,   Maximum input 1W
Average working voltage
 0.7-2V
Operating voltage（max）
 2 V
Electrical   specification
F0
 300HZ+-20%
Frequency
 F0-4KHz
Sound pressure level
 85DB+-3DB @1kHz 2V
Current consumption（Max）
 60 mA
Distortion
 5% less
Operation temperature
 -20 ° C~60 ° C
Storage temperature
 -30 ° C~+70 ° C
 Reliability
Opertation Test
 Input 1V, frequency 300-3KHZ ,Must be normal
drop Test
 Must be normal after  1.5meters free falling three times
Cold  Test
 Must be normal -25±3℃ and relative humidity    -    %  16hours and then room temperature 1 hour
Humidity  Test
 Must be normal after40±2℃ and relative humidity 90-95% 48 hours and then room temperature 1hour
