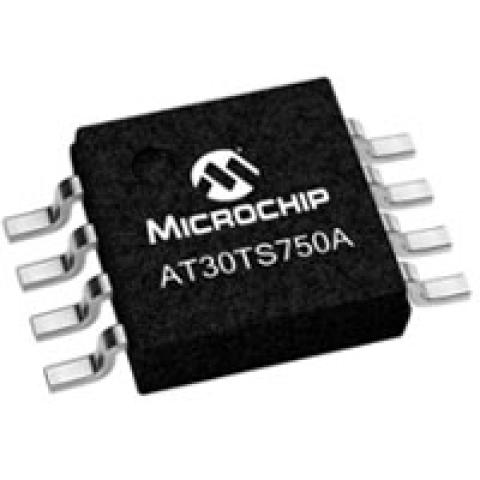

AT30TS750A Digital Temperature Sensor
- Model : AT30TS750A
Microchip Technology
+0.5°C accuracy from 0°C to +85C (typical)
+1.0°C accuracyfrom -25°C to +105C(typical)
Shutdown mode: 0.6 A(typical)
Power saving one-shot temperature conversion measurement
Space saving SOIC,DFN,MSOP packages available- Add To Inquiry
- Have a question?
Welcome to the Microchip AT30TS750A Digital Temperature Sensor product training module. This presentation will introduce the Microchip AT30TS750A digital temperature sensor, while highlighting its key features, benefits, unique strengths, and applications.
Features:
Single 1.7 V to 5.5 V supply
Low operating current: 150 A
Integrated Nonvolatile Registers
User selectable 9- to 12-bit resolution
2-wire |2CTM/SMBus compatible interface
Measures temperature from -55°C to +125°C
Pin and software compatible with industry-standard LM75
